Rizwan Flanges, located in Manama, Bahrain, stands out as a top manufacturer and supplier of premium industrial flanges, with a special focus on Super Duplex Steel Flat Flanges. Known for their precision engineering and impressive performance, these flanges are crafted to meet the toughest industrial standards. Rizwan Flanges merges cutting-edge manufacturing methods with strict quality control to guarantee durability, corrosion resistance, and reliability. With a solid reputation among industries throughout the region, the company delivers solutions that promote safe and efficient operations in sectors like oil and gas, petrochemical, marine, and chemical processing, making them a go-to choice for Super Duplex Steel Flat Flanges.
Super Duplex Steel Flat Flanges are made from a well-balanced mix of chromium, nickel, and molybdenum, which boosts their strength and resistance to corrosion. Typically, they contain about 22-25% chromium, 5-7% nickel, 3-5% molybdenum, and trace amounts of nitrogen, providing excellent protection against pitting, crevice corrosion, and stress corrosion cracking. On the mechanical side, these flanges boast high tensile and yield strength, along with outstanding toughness and durability, even in extreme temperature and pressure situations. Their blend of mechanical strength and corrosion resistance makes them perfect for critical industrial applications that demand longevity and safety.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 S32760 Super Duplex Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Super Duplex Steel S32750, F53, S32760, F55, S32950, F52 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Rizwan Flanges, a leading supplier in Manama, Bahrain, offers an extensive selection of Super Duplex Steel Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Super duplex steel flat flanges are extremely corrosion-resistant, strong and appropriate for aggressive environments. They are normally used in oil and gas, chemical processing, marine and power generation where high strength and pitting, crevice and stress corrosion cracking resistance are critical. The flanges provide excellent performance in high-temperature and high-pressure systems. Their high strength and resistance to aggressive chemicals put them in higher positions for service in pipelines, offshore platforms, desalination plants, etc. Super duplex steel flanges also offer long-lasting performance, resulting in reduced costs of maintenance as well as system downtime in applications of critical importance.

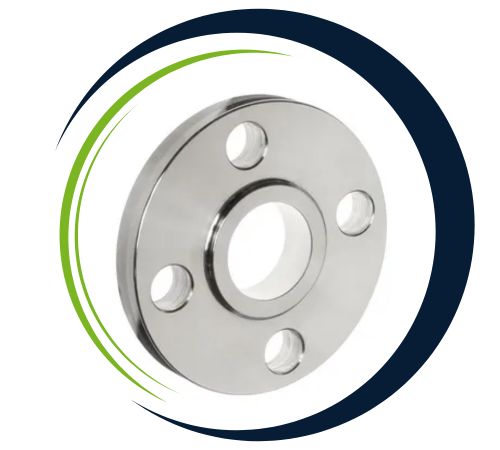

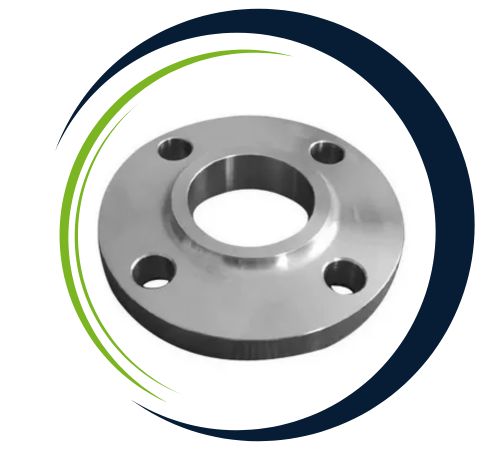

| ASME/ANSI B 16.5 | Flat Face Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Flat Face Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Flat Face Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Flat Face |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Super Duplex Steel Flat Flanges to meet specific project needs. Our team at Rizwan Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rizwanflanges.com.
These flanges find their place in industries where strength and resistance to corrosion are paramount. You’ll often see them in oil and gas pipelines, petrochemical facilities, marine engineering, and chemical processing equipment. They’re perfect for connecting pipes and valves in high-pressure and high-temperature settings, ensuring leak-proof and dependable operations. Their ability to resist chloride-induced corrosion makes them especially suitable for seawater applications and offshore platforms. Plus, they’re utilized in desalination plants, power generation, and various industrial processes where chemical and thermal stresses are significant.
