Rizwan Flanges, based in Manama, Bahrain, stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 253MA Flanges. Renowned for their precision, durability, and exceptional performance, Rizwan Flanges offers products that adhere to international standards, guaranteeing long-lasting reliability even in tough industrial settings. These Stainless Steel 253MA Flanges are specially designed to thrive in high-temperature and corrosive environments, providing remarkable oxidation resistance and structural stability. Catering to sectors like power generation, chemical processing, petrochemical, and marine applications, Rizwan Flanges delivers products built to endure extreme operational conditions. Their flanges not only ensure safety but also enhance efficiency, making them a go-to choice for critical piping systems.
The Stainless Steel 253MA Flanges are crafted from a high-alloy austenitic stainless steel blend that includes iron, chromium, nickel, and molybdenum, along with a controlled addition of nitrogen. This unique composition results in outstanding mechanical properties, such as high tensile and yield strength, excellent creep resistance, and remarkable toughness at elevated temperatures. The alloy also boasts exceptional resistance to oxidation and corrosion, especially in harsh, high-temperature settings. These flanges maintain their shape under thermal stress and resist scaling and pitting, making them perfect for critical piping systems and applications that require long-term reliability and performance.
| Standards | ANSI/ASME B16.5, EN Flanges, BS 10, B16.47 Series A & B, EN-1092, ASME Flanges, BS Flanges, B16.48, DIN, DIN Flanges, GOST Flanges, ANSI Flanges, BS4504. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Production technique | Forged, Heat treated and machined |
|
Special design |
As per your drawing |
| AS, ANSI, BS, DIN and JIS | |
| 15 NB (1/2″) to 200 NB (8″) | |
| Equal and Reducing Configurations | |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Small Tongue, Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Tongue & Groove, Large Male-Female (LMF). |
| Largest Bore Diameter Sizes | NPS ≤ 10 |
| Minimum & Maximum Size | 1/2″ To 48″ |
| Origin | Indian / Japan / Korean / West Europe / USA |
| JIS Standard | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| A182 Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
|
Test Certificates |
EN 10204/3.1B |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc. | |
| Application | Gas, Power, Chemical, Metallurgy, Petroleum, Shipbuilding, Construction etc. |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Ce | Fe |
| 253 MA | 0.05 – 0.10 | 10.00-12.0 max | 1.40 -2.00 max | 0.14-0.20 max | 1.40-2.00 max | 0.80 max | 0.04 max | 20.00 – 22.00 | 0.03 – 0.08 | Balance |
| Tensile Strength | Elongation | Yield Strength (0.2%Offset) | Hardness |
| 600 | 40% | 310 | 95(Rockwell B) |

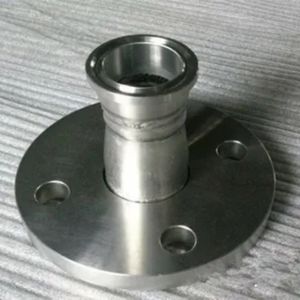

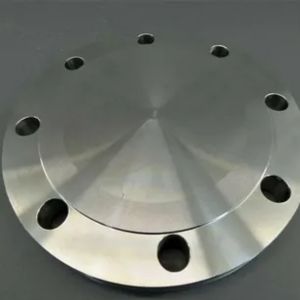

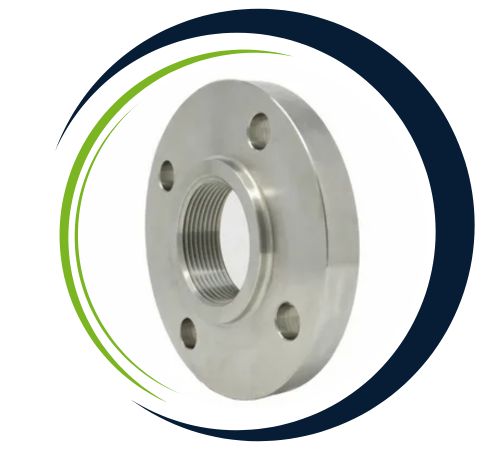

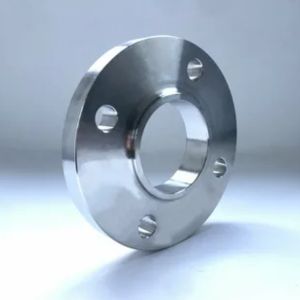

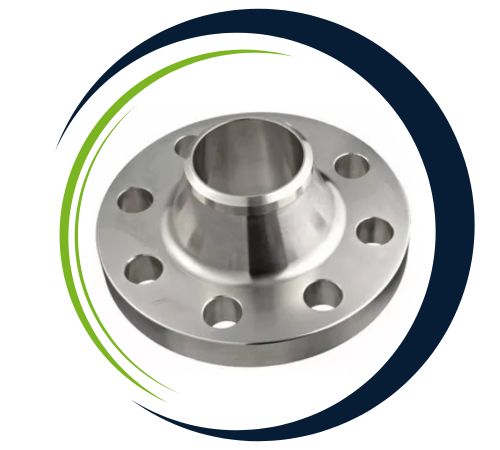

Rizwan Flanges, a leading supplier in Manama, Bahrain, offers an extensive selection of Stainless Steel 253MA flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| STANDARD | WERKSTOFF NR. | UNS |
| 253 MA | 1.4835 | S30815 |
Stainless Steel 253MA flanges are widely used in industries requiring high-temperature and corrosion-resistant materials. They are commonly employed in power generation, petrochemical, and chemical processing plants, particularly in environments with elevated temperatures and aggressive chemicals. Due to their excellent creep strength and oxidation resistance, these flanges are ideal for heat exchangers, boilers, and furnace applications. Additionally, they are used in manufacturing equipment for the aerospace and marine industries, where high strength and resistance to thermal fatigue are essential for durability and performance.
| Nominal Size | Outside Diameter (OD) | Min. Thickness (T) | RF Dia. (R) | No. of Bolt Holes | Diameter of Holes | Bolt Circle (BC) | SO Bore ID (SB) | WN Bore ID (WB) | Dia. Hub Base (HB) | Dia. of Hub Top (HT) | SO LTH (SL) | WN LTH (WL) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1⁄2 | 3.50 | 0.38 | 1.38 | 4 | 0.62 | 2.38 | 0.88 | 0.62 | 1.19 | 0.84 | 0.56 | 1.81 |
| 3⁄4 | 3.88 | 0.44 | 1.69 | 4 | 0.62 | 2.75 | 1.09 | 0.82 | 1.50 | 1.05 | 0.56 | 2.00 |
| 1 | 4.25 | 0.50 | 2.00 | 4 | 0.62 | 3.12 | 1.36 | 1.05 | 1.94 | 1.32 | 0.62 | 2.12 |
| 11⁄4 | 4.62 | 0.56 | 2.50 | 4 | 0.62 | 3.50 | 1.70 | 1.38 | 2.31 | 1.66 | 0.75 | 2.19 |
| 11⁄2 | 5.00 | 0.62 | 2.88 | 4 | 0.62 | 3.88 | 1.95 | 1.61 | 2.56 | 1.90 | 0.81 | 2.38 |
| 2 | 6.00 | 0.69 | 3.62 | 4 | 0.75 | 4.75 | 2.44 | 2.07 | 3.06 | 2.38 | 0.94 | 2.44 |
| 21⁄2 | 7.00 | 0.81 | 4.12 | 4 | 0.75 | 5.50 | 2.94 | 2.47 | 3.56 | 2.88 | 1.06 | 2.69 |
| 3 | 7.50 | 0.88 | 5.00 | 4 | 0.75 | 6.00 | 3.57 | 3.07 | 4.25 | 3.50 | 1.12 | 2.69 |
| 31⁄2 | 8.50 | 0.88 | 5.50 | 8 | 0.75 | 7.00 | 4.07 | 3.55 | 4.81 | 4.00 | 1.19 | 2.75 |
| 4 | 9.00 | 0.88 | 6.19 | 8 | 0.75 | 7.50 | 4.57 | 4.03 | 5.31 | 4.50 | 1.25 | 2.94 |
| 5 | 10.00 | 0.88 | 7.31 | 8 | 0.88 | 8.50 | 5.66 | 5.05 | 6.44 | 5.56 | 1.38 | 3.44 |
| 6 | 11.00 | 0.94 | 8.50 | 8 | 0.88 | 9.50 | 6.72 | 6.07 | 7.56 | 6.63 | 1.50 | 3.44 |
| 8 | 13.50 | 1.06 | 10.62 | 8 | 0.88 | 11.75 | 8.72 | 7.98 | 9.69 | 8.63 | 1.69 | 3.94 |
| 10 | 16.00 | 1.12 | 12.75 | 12 | 1.00 | 14.25 | 10.88 | 10.02 | 12.00 | 10.75 | 1.88 | 3.94 |
| 12 | 19.00 | 1.19 | 15.00 | 12 | 1.00 | 17.00 | 12.88 | 12.00 | 14.38 | 12.75 | 2.12 | 4.44 |
| 14 | 21.00 | 1.31 | 16.25 | 12 | 1.12 | 18.75 | 14.14 | 13.25 | 15.75 | 14.00 | 2.19 | 4.94 |
| 16 | 23.50 | 1.38 | 18.50 | 16 | 1.12 | 21.25 | 16.16 | 15.25 | 18.00 | 16.00 | 2.44 | 4.94 |
| 18 | 25.00 | 1.50 | 21.00 | 16 | 1.25 | 22.75 | 18.18 | 17.25 | 19.88 | 18.00 | 2.62 | 5.44 |
| 20 | 27.50 | 1.62 | 23.00 | 20 | 1.25 | 25.00 | 20.20 | 19.25 | 22.00 | 20.00 | 2.81 | 5.62 |
| 22 | 29.50 | 1.75 | 25.25 | 20 | 1.38 | 27.25 | 22.22 | 21.25 | 24.25 | 22.00 | 3.07 | 5.82 |
| 24 | 32.00 | 1.81 | 27.25 | 20 | 1.38 | 29.50 | 24.25 | 23.25 | 26.12 | 24.00 | 3.19 | 5.94 |
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
Yes, we offer custom sizes for Stainless Steel 253MA flanges to meet specific project needs. Our team at Rizwan Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rizwanflanges.com.
Stainless Steel 253MA Flanges find their place in industries where high-temperature strength, corrosion resistance, and durability are non-negotiable. They’re commonly used in power plants, chemical and petrochemical processing, marine environments, and high-temperature heat exchanger systems. These flanges connect pipes, valves, pumps, and other equipment that face extreme temperatures and corrosive substances. Their superior mechanical and chemical properties guarantee leak-proof connections, operational reliability, and an extended service life.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
