Rizwan Flanges has earned a solid reputation as a reliable manufacturer and supplier of top-notch Monel 400 Flanges in Manama, Bahrain. They specialize in providing corrosion-resistant and high-strength solutions that are perfect for tough industrial settings. With a strong focus on precision engineering and adherence to global manufacturing standards, the company crafts Monel 400 flanges that excel in marine, chemical, and high-temperature applications. Their products are celebrated for their durability, reliability, and long service life, making them a go-to choice for critical operations. Rizwan Flanges is dedicated to supporting various industries across Bahrain with prompt delivery, expert technical support, and customized flange solutions tailored to meet client needs.
Monel 400 Flanges are primarily made of nickel and copper, with added iron and manganese to boost strength and corrosion resistance. This alloy boasts impressive mechanical properties, including high tensile strength, outstanding toughness, and remarkable resistance to seawater, acids, and alkaline environments. Monel 400 remains stable across a wide temperature range and offers good weldability and fatigue resistance. These features make Monel 400 flanges ideal for harsh operating conditions where durability and performance are crucial.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 400 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |

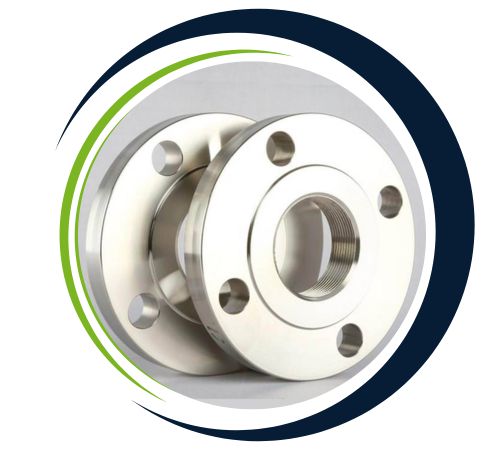

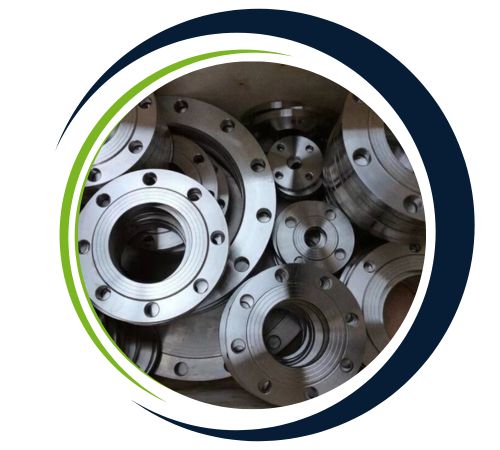

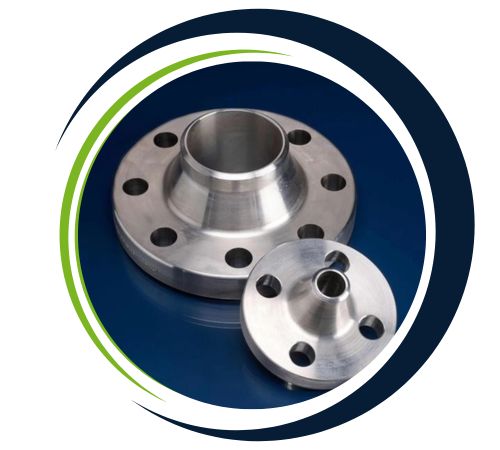

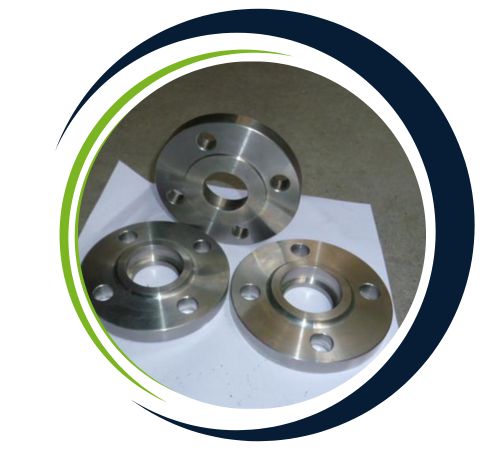

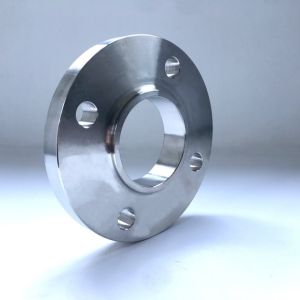

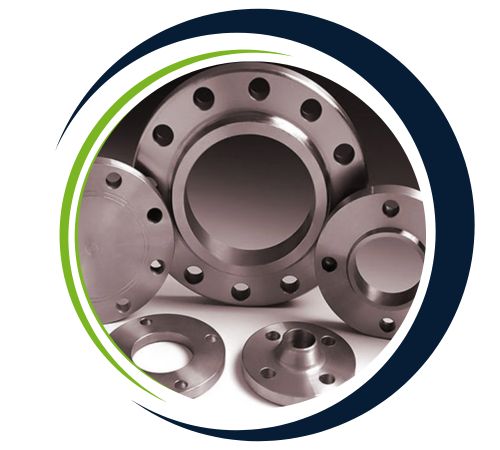

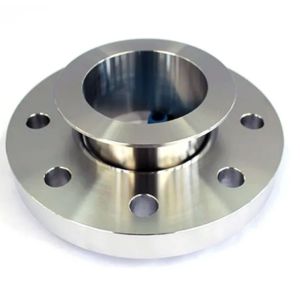

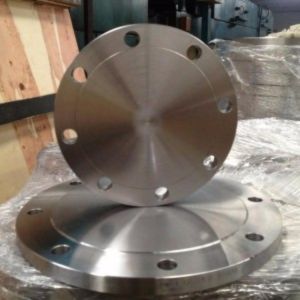

Rizwan Flanges, a leading supplier in Manama, Bahrain, offers an extensive selection of Monel 400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
You’ll find Monel 400 Flanges commonly used in environments that deal with corrosive media, such as marine engineering, seawater handling systems, and offshore platforms. They play a vital role in chemical processing plants, petrochemical industries, and refineries thanks to their resistance to sulfuric and hydrofluoric acids. These flanges are also essential in heat exchangers, pumps, valves, and equipment for oil and gas extraction. Their ability to maintain mechanical strength at high temperatures makes them suitable for power generation and high-pressure applications. In summary, Monel 400 flanges deliver long-term reliability in demanding industrial operations.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Yes, we offer custom sizes for Monel 400 Flanges to meet specific project needs. Our team at Rizwan Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rizwanflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
