Rizwan Flanges, a reputable manufacturer and supplier located in Manama, Bahrain, specializes in top-notch Hastelloy C22 Flanges that adhere to the highest industrial standards. Renowned for their remarkable durability, resistance to corrosion, and precision engineering, these flanges are designed to perform reliably even in the toughest conditions. Rizwan Flanges employs cutting-edge production methods alongside strict quality control measures to ensure their products excel in fields like chemical processing, marine engineering, and high-temperature applications. With a strong commitment to excellence, timely delivery, and customer satisfaction, the company has become a go-to choice for industries in need of superior Hastelloy C22 Flanges, both in Bahrain and around the globe.
Hastelloy C22 Flanges are primarily made from nickel, chromium, molybdenum, and tungsten, which gives them outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking. This alloy boasts excellent mechanical properties, including high tensile strength, superior hardness, and impressive thermal stability, making it perfect for harsh operating environments. These flanges maintain their performance under both oxidizing and reducing conditions, ensuring dependable operation in chemical plants, offshore installations, and high-pressure systems. Their exceptional metallurgical stability and uniformity make Hastelloy C22 Flanges ideal for applications where precision is critical.
| C22 Forged Fittings Specifications | ASTM B564/ ASME SB564 |
|---|---|
| Alloy C22 Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Hastelloy C22 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Hastelloy C22 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B564 C22 Hastelloy Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Hastelloy C22 Forged Fittings Thread | NPT, BSPT, BSPP |
| C22 Hastelloy Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy C22 Forged Fittings Origin & Mills | Bahrain |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

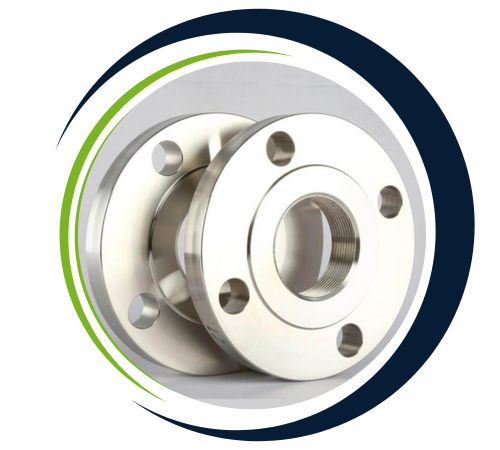

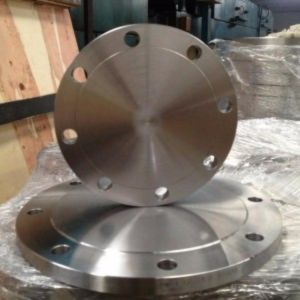

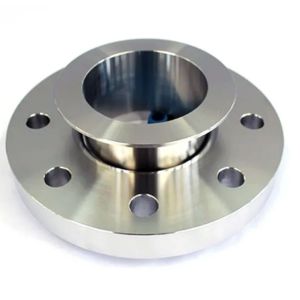

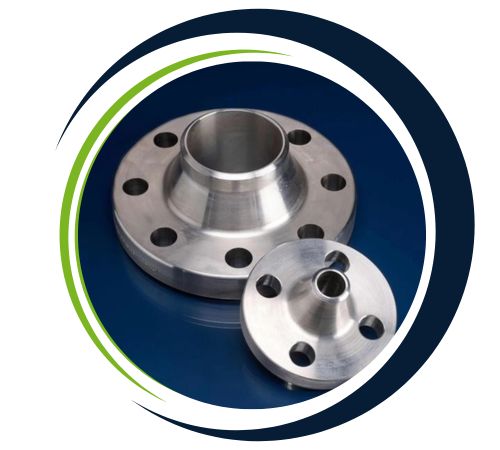

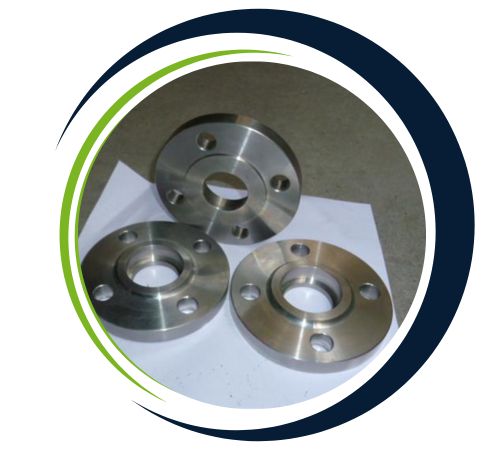

Rizwan Flanges, a leading supplier in Manama, Bahrain, offers an extensive selection of Hastelloy C22 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hastelloy C22 Flanges are widely utilized across various industries that demand exceptional corrosion resistance and high-temperature strength. They play a vital role in chemical processing plants, where they manage aggressive acids, solvents, and chlorides. In the petrochemical and oil & gas sectors, these flanges guarantee leak-proof performance in high-pressure piping systems. Additionally, they are well-suited for marine engineering, wastewater treatment, and pollution control equipment due to their resistance to localized corrosion. The pharmaceutical and food processing industries also rely on Hastelloy C22 Flanges for their hygienic properties.
| ASTM B564 / B564M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Hastelloy Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Hastelloy fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Yes, we offer custom sizes for Hastelloy C22 Flanges to meet specific project needs. Our team at Rizwan Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rizwanflanges.com.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Hastelloy C22 | N06022 | 2.4602 | – | NiCr21Mo14W | NW 6022 | – | – |
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
