Strategically located in the industrial hub of Manama, Bahrain, Rizwan Flanges has established itself as a trusted name in the supply of high-performance piping components. Specializing in the production of Copper Nickel 9010 Flanges, the company is dedicated to meeting the rigorous demands of marine and offshore environments. Their commitment to precision manufacturing and stringent quality control ensures that every flange delivers exceptional corrosion resistance and long-term reliability, making them a preferred partner for critical projects across the region and beyond.
The superior performance of Copper Nickel 9010 Flanges stems from their unique composition, primarily a 90% copper and 10% nickel alloy. This blend is further enhanced with small additions of iron and manganese, which significantly boost its strength and resistance to seawater corrosion. The resulting material offers excellent mechanical properties, including high tensile strength and outstanding ductility. This combination allows these flanges to withstand immense pressure and mechanical stress, even in the most challenging conditions, without succumbing to cracking or failure.
Dimensions : ANSI/ASME B16.5, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standards: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Specifications : ASTM B564 / ASME SB 564
Size : 1 / 2” to 12″
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN.
Grade: Copper-Nickel Cu-Ni 90 / 10 (C70600)
Our Cupro Nickel 90 / 10 Flanges conform to NACE MR0175/ISO 15156
| Grade | Cu | Mn | Pb | Ni+Co | Fe | Zn |
| Copper Nickel 90/10 | REM | 1.00 max | 0.05 max | 9 – 11 | 1.0 – 1.8 | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 0.323 lb/in3 at 68 F | 260 mpa | 105 mpa | 30 % |

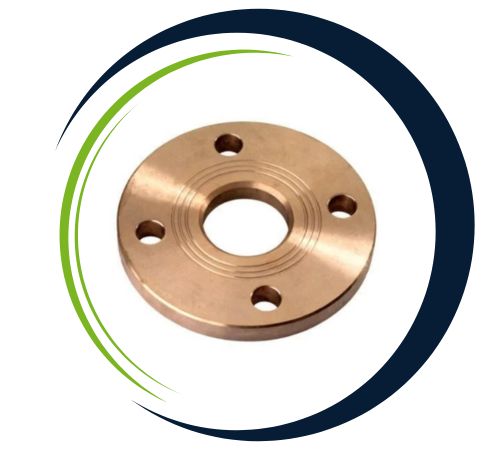

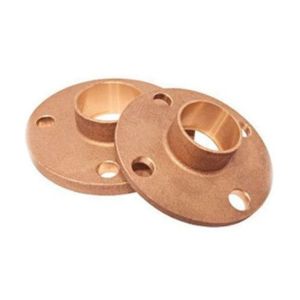

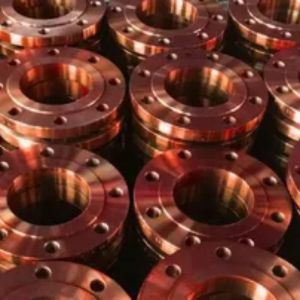

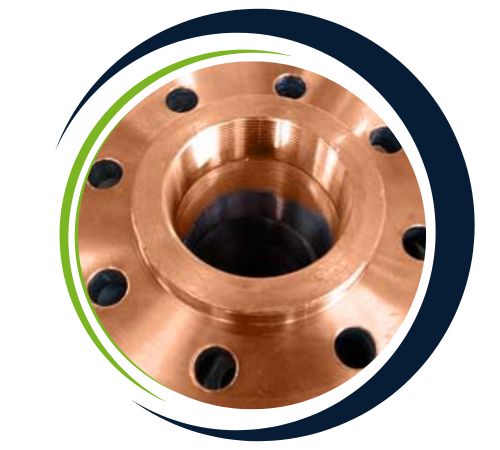

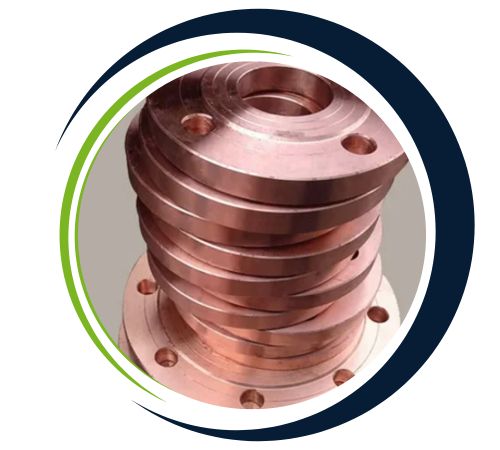

Rizwan Flanges, a leading supplier in Manama, Bahrain, offers an extensive selection of Copper Nickel 90/10 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| STANDARD | WERKSTOFF NR. | DIN | BS | EN | UNS |
| Copper Nickel 90/10 | 2.0872 | CuNi10Fe1Mn | CN102 | CW352H | N70600 |
Copper Nickel 90/10 flanges are commonly used in marine, chemical, and petrochemical industries due to their excellent resistance to corrosion, especially in seawater and brine environments. They are ideal for heat exchangers, desalination plants, and offshore platforms, where durability and resistance to fouling are essential. These flanges also offer good weldability and strength, making them suitable for piping systems exposed to harsh conditions. Additionally, Copper Nickel 90/10 flanges are used in heat transfer systems and power generation applications, where reliable performance is critical.
Yes, we offer custom sizes for Copper Nickel 90/10 Flanges to meet specific project needs. Our team at Rizwan Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rizwanflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
