Located in the heart of Manama, Bahrain, Rizwan Flanges has built a strong reputation for quality and reliability in the industrial supply sector. We take pride in producing robust carbon steel orifice flanges, engineered to meet the demanding requirements of various industries. Our commitment goes beyond manufacturing; we are your dedicated partners, ensuring you receive components that guarantee precision and long-lasting performance for your critical flow measurement systems. Our presence in Manama allows us to serve both local and international clients with efficiency and expertise.
The composition of our carbon steel orifice flanges is carefully controlled, primarily consisting of iron and carbon, with added elements like manganese for enhanced strength. This results in a material with excellent mechanical properties, including high tensile strength and good ductility, allowing it to withstand significant pressure and stress without failing. This combination of a reliable composition and proven mechanical integrity ensures these flanges perform consistently in challenging environments, providing a dependable sealing surface for accurate orifice plate installation.

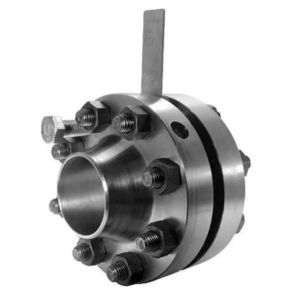

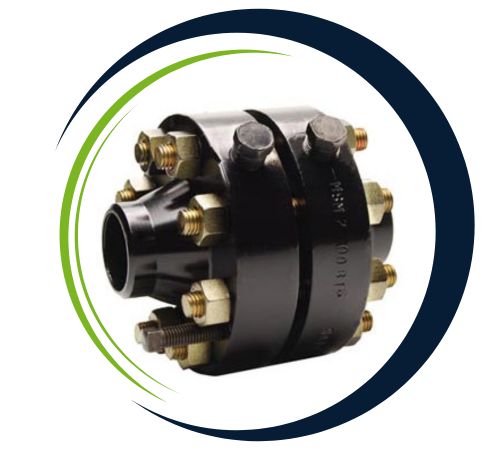

Rizwan Flanges, a premier supplier in Manama, Bahrain, specializes in high-quality Carbon Steel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.

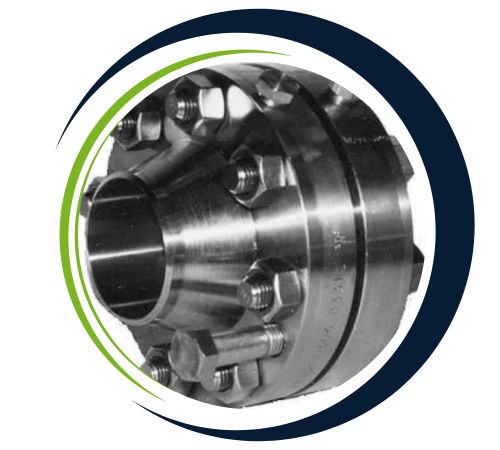

Carbon Steel Orifice Flanges Specifications: ASTM A105/ ASME SA105

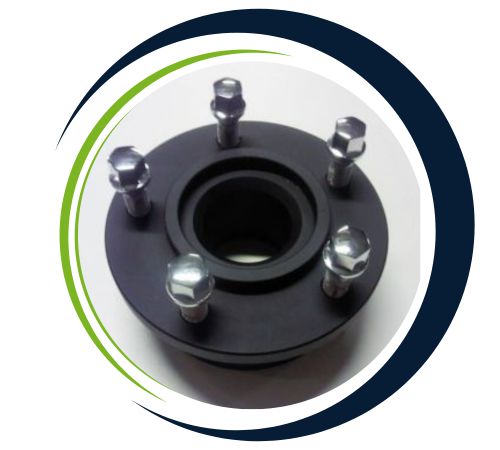

Carbon Steel Orifice Flanges Dimensions: ANSI/ASME B16.36, Series A & B, BS4504, BS 10, EN-1092, DIN, etc.
Carbon Steel Orifice Flanges Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Carbon Steel Orifice Flanges : Size :1/2″ (15 NB) to 48″ (1200NB)
Carbon Steel Orifice Flanges Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Orifice Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Hub OD | Weld Neck OD | Welding Neck Length | RF Dia. | RF Height | PCD | Orifice Hole dia | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | F | G | H | I | ||||||||
| 1 | 25 | 125 | 36.6 | 54 | 33.4 | 81 | 50.8 | 2 | 88.9 | 6.4 | 4 | 5/8 | 125 | 3/4 | M16 | 4.5 |
| 1 1/2 | 40 | 155 | 36.6 | 70 | 48.3 | 84 | 73 | 2 | 114.3 | 6.4 | 4 | 3/4 | 135 | 7/8 | M20 | 6.5 |
| 2 | 50 | 165 | 36.6 | 84 | 60.3 | 84 | 92.1 | 2 | 127 | 6.4 | 8 | 5/8 | 125 | 3/4 | M16 | 7 |
| 2 1/2 | 65 | 190 | 36.6 | 100 | 73 | 87 | 104.8 | 2 | 149.2 | 6.4 | 8 | 3/4 | 135 | 7/8 | M20 | 7.5 |
| 3 | 80 | 210 | 36.6 | 117 | 88.9 | 87 | 127 | 2 | 168.3 | 9.5 | 8 | 3/4 | 135 | 7/8 | M20 | 9.4 |
| 4 | 100 | 255 | 36.6 | 146 | 114.3 | 90 | 157.2 | 2 | 200 | 12.7 | 8 | 3/4 | 135 | 7/8 | M20 | 13.2 |
| 6 | 150 | 320 | 36.6 | 206 | 168.3 | 98 | 215.9 | 2 | 269.9 | 12.7 | 12 | 3/4 | 135 | 7/8 | M20 | 14.6 |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 12.7 | 12 | 7/8 | 145 | 1 | M24 | 30 |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.3 | 12.7 | 16 | 1 | 165 | 1 1/8 | M27 | 41 |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 12.7 | 16 | 1 1/8 | 180 | 1 1/4 | M30 | 62 |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 12.7 | 20 | 1 1/8 | 185 | 1 1/4 | M30 | 84 |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 12.7 | 20 | 1 1/4 | 195 | 1 3/8 | M33 | 111 |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 12.7 | 24 | 1 1/4 | 205 | 1 3/8 | M33 | 138 |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 12.7 | 24 | 1 1/4 | 215 | 1 3/8 | M33 | 171 |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 12.7 | 24 | 1 1/2 | 240 | 1 5/8 | M39 | 247 |
Carbon steel orifice flanges find applications in numerous industrial processes to meter liquid or gas flow through pipes. The flanges are used to support orifice plates, which produce a pressure difference and assist in taking into account flow. Common uses involve oil and gas installations, power generation plants, chemical processing facilities, water treatment facilities, and air conditioning and heating systems. It is usually applied in several uses where precise measurement of flow is needed to maintain process control and efficiency. Carbon steel has strength, cost and longevity and is perfect for high-pressure and high-temperature applications.
Yes, we offer custom sizes for Carbon Steel Orifice Flanges to meet specific project needs. Our team at Rizwan Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rizwanflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
